Solar Switchboard Upgrade Enhances Chelmer’s Air Con System

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade supporting a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade needed.

Why Choosing Precision Electrical & Air for Your Switchboard Upgrade is Beneficial

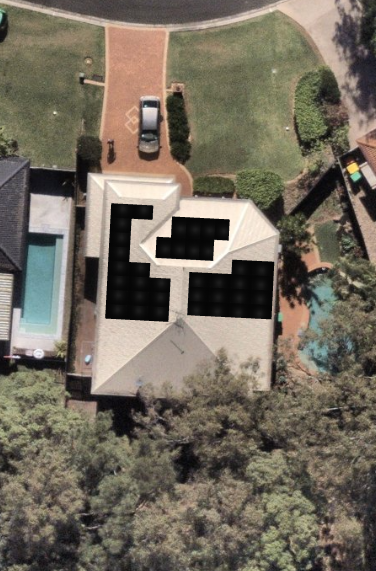

This homeowner in Chelmer undertook a significant renovation project, which included the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the residence. Additionally, a new ducted air conditioning system was integrated into the overall plan. Prior to connecting these advanced systems, it was imperative to assess and upgrade the existing switchboard to ensure compliance with contemporary standards and effectively manage the increased electrical loads introduced by these installations.

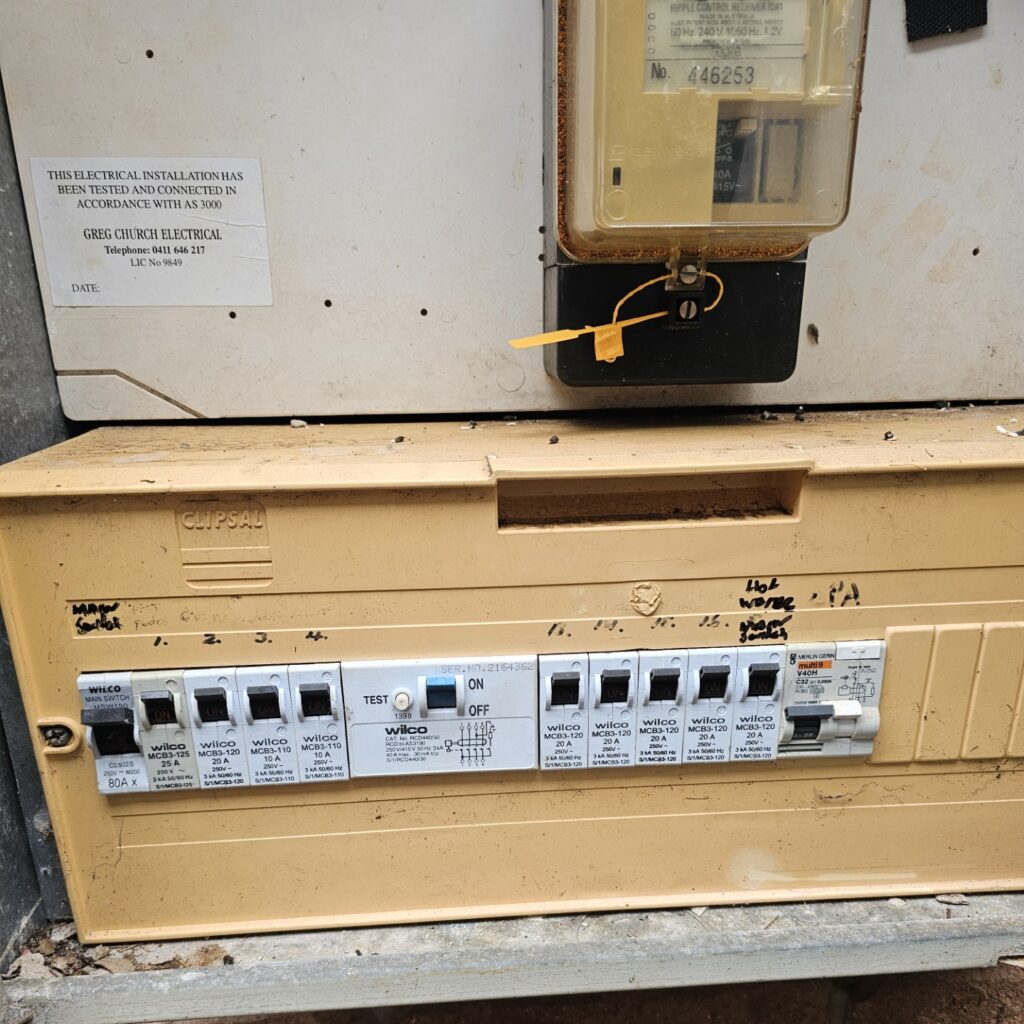

The original switchboard was antiquated, featuring obsolete circuit breakers and only a single Residual Current Device (RCD) that offered protection for the entire property. This outdated setup was incapable of supporting solar energy integration and battery storage effectively. Moreover, the inadequate circuit labelling rendered it non-compliant with modern standards governing contemporary energy generation systems. This lack of compliance presented a substantial risk to the efficient operation of the newly upgraded systems, necessitating immediate action for enhancement.

Is a Three-Phase Upgrade Really Necessary for Your Energy System?

When assessing the specifications of a 17.86kW solar system coupled with a 30kWh battery, many homeowners mistakenly believe that a three-phase upgrade is imperative. This misunderstanding can lead to significant financial consequences for homeowners, potentially incurring costs ranging from £3,500 to £6,000, along with an extended waiting period for approval from Energex concerning necessary network modifications.

Thorough Initial Technical Assessment Conducted to Evaluate Needs

Two critical factors were decisive in determining the necessity of a three-phase upgrade. Firstly, the supply cable for the home was strategically located near the street junction. This advantageous positioning enabled the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since the solar and battery systems are specifically designed to reduce demand on the grid rather than increase it, there was no technical justification from the network's perspective that warranted a three-phase upgrade. Furthermore, the ducted air conditioning system also met the essential parameters for effective single-phase operation, confirming the appropriateness of the existing configuration.

As a result, the decision was made to maintain the single-phase setup. The switchboard underwent an upgrade to ensure it could safely and competently manage all new electrical loads without compromising safety or compliance with regulatory standards that govern electrical installations.

Thorough Inspection of Installed Components for Superior Safety and Compliance

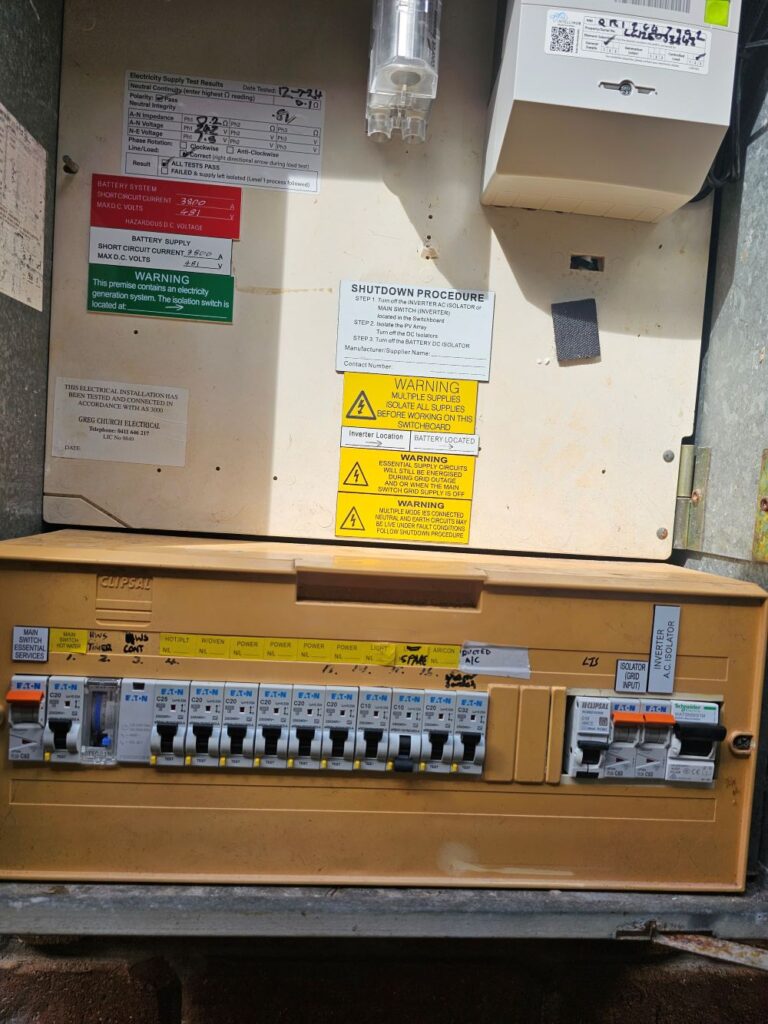

The existing switchboard underwent a complete disassembly and a meticulous reconfiguration process. Each circuit breaker was replaced with new, appropriately rated units from Eaton, ensuring each breaker was meticulously labelled for easy identification. The circuits were carefully segregated; dedicated circuits were established for power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning, enhancing safety and ensuring compliance with current regulations governing electrical installations.

A timer was integrated into the hot water service to ensure efficient operation during peak solar generation hours, optimising the system's performance. This strategic addition significantly diminishes reliance on the grid by maximising the solar system's output throughout the day. Additionally, a dedicated Hot Water Service (HWS) contactor circuit was implemented to ensure proper functionality and energy efficiency.

The upgraded switchboard was meticulously designed for seamless integration with both the solar inverter and battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, alongside multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully executed and documented for the switchboard, ensuring compliance with regulatory standards.

The completed switchboard now fully adheres to the latest Australian standards, ensuring it is appropriately configured for any future electrical service work that may be required at the property.

Homeowner Reaps Rewards from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard capable of safely supporting their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most crucially, they avoided unnecessary expenditures associated with a three-phase upgrade that was not essential based on their specific circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Wondering If It Is Necessary?

While three-phase upgrades can be essential in specific cases, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a comprehensive analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We guarantee no upselling takes place; you will receive an accurate evaluation tailored to your home's unique requirements.

Your Frequently Asked Questions Addressed Regarding Switchboard Upgrades

How do electricians determine the necessity of three-phase power for solar systems?

The assessment hinges on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is adequate. However, should the voltage rise exceed this threshold, three-phase power becomes essential to distribute the export load across three conductors, thereby keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The further your home is situated from the street junction, the greater the resistance in the cable, which results in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance remains within this limit to ascertain whether single-phase or three-phase power is suitable for your property.
