Restoring Quarry Tile Floors for Improved Brightness and Airflow

How do quarry tiles differ from other flooring materials?

Understanding the Importance of the Clay Body

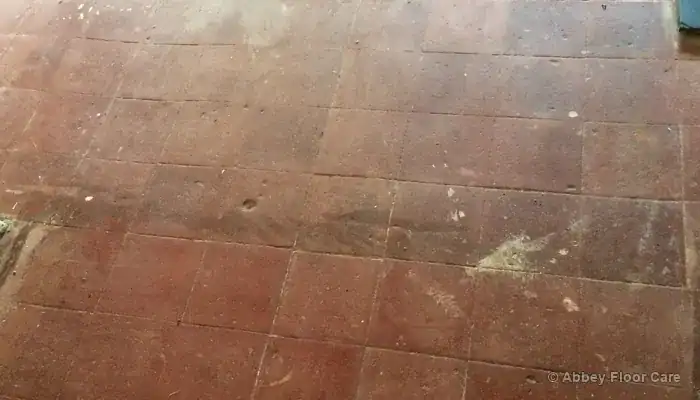

Quarry tiles are manufactured from dense, unglazed clay that is subjected to high-temperature firing, resulting in a robust moisture-active surface without a protective glaze. Unlike their ceramic or porcelain counterparts, quarry tiles do not feature a sealing glaze, rendering the clay body susceptible to foot traffic, cleaning agents, and moisture from the outset. This continuous process of moisture absorption and release is a key aspect of their design.

The clay body contains fine mineral particles with voids that allow moisture vapour to pass through. This mechanism facilitates the movement of water vapour from the subfloor, through the tile, and evaporating at the surface. In many historic UK homes, quarry tiles are often laid directly on lime or compacted earth bases, frequently without a damp-proof membrane, thus encouraging a consistent and intentional flow of moisture. Applying a sealant disrupts this natural function rather than providing protection.

The Significance of the Firing Process

The temperature at which quarry tiles are fired influences their final density, colour, and porosity. Tiles fired at lower temperatures produce softer, more porous materials that quickly absorb liquids, commonly found in older Victorian and Edwardian homes. In contrast, tiles fired at higher temperatures create denser structures with tighter voids, enhancing their resistance to liquid absorption while still remaining unglazed and moisture-active. Both types are fundamentally different from glazed or polished flooring options.

This manufacturing method ensures that the colour of quarry tiles is an intrinsic part of their structure, extending throughout the clay body rather than merely coating the surface. As a result, the colour cannot be scrubbed away like a painted finish. Over time, the surface texture may alter due to wear, leading to colour variations as contaminants accumulate within the tile. A consistently dark floor likely conceals ingrained contamination rather than reflecting its original clay hue.

The Consequences of Lack of Glaze

Glazed tiles feature a glass-like layer that repels liquids, resists stains, and simplifies cleaning by keeping dirt on the surface. Quarry tiles, however, do not possess this protective layer; their open clay surface allows liquids to penetrate directly. Grease, cleaning residues, soil, and water infiltrate the tile body rather than remaining on the surface. Over time, these substances accumulate beneath the surface, rendering standard cleaning ineffective.

This explains why the conventional cleaning method — applying a product, mopping, and rinsing — consistently yields unsatisfactory results on quarry tiles. Cleaning agents typically only address residues on the surface while deeper layers of contamination persist. A floor that has been cleaned regularly for years can still retain decades worth of ingrained dirt, as traditional cleaning solutions do not penetrate deeply enough to eradicate it. Acknowledging the need for professional deep cleaning is crucial for the effective maintenance of these floors.

This quarry tile resource offers extensive information on every aspect of these floors, from quarry tile fundamentals to cleaning, restoration, and sealing recommendations for various conditions.

The Role of Moisture Vapour Transmission and the Risks of Obstruction

Moisture vapour transmission refers to the ongoing movement of water vapour through the subfloor, tile, and into the living environment. A properly functioning quarry tile floor allows this process to occur invisibly and without damage. The floor breathes effectively, maintaining stability while salts carried by moisture either evaporate harmlessly at the surface or disperse through the open clay structure.

When moisture transmission is blocked, often due to a film-forming sealer that obstructs the tile's pores, moisture accumulates beneath the surface. This build-up can lead to blistering, peeling, or discolouration. Salts deposited from trapped moisture create white crystalline deposits known as efflorescence. Additional cleaning efforts cannot resolve this issue; the core problem lies in the blocked breathability, necessitating the removal of the coating to restore moisture movement.

Identifying Embedded Contamination and Its Hidden Build-up

Embedded contamination includes grease, soil, organic matter, and residues that have infiltrated the clay body over years of use. Unlike recent spills, this contamination is not visible on the surface. Instead, it manifests as general darkening, stubborn dullness, or a floor that never appears clean, despite cleaning efforts. Heavily contaminated floors may feel slightly sticky due to old wax and grease residues trapped in the upper layers of the clay body.

This build-up occurs gradually and often goes unnoticed. Each meal prepared, every muddy shoe, and every application of general cleaning product contributes to a layer of residue absorbed by the tile. Over a decade or two, this results in contamination that cannot be removed by surface cleaning products. Tackling it requires specialised chemistry that penetrates the clay body, typically achieved through controlled alkaline cleaning with wet vacuum extraction, targeting the contamination directly rather than merely treating the surface.

What causes the floor to appear dirty even after cleaning?

If your quarry tile floor looks dirty after mopping, it is likely that contamination has penetrated the clay body itself. At this stage, traditional cleaning methods cease to provide visible results, and continuing with the same techniques will not change the outcome. The floor isn’t unresponsive because it’s beyond repair; it’s unresponsive because the cleaning efforts are targeting the wrong layer.

Residue cycling occurs when each cleaning session disturbs surface contamination without actually removing the embedded layer. The floor may appear cleaner immediately after mopping, but it reverts to its dull state within hours as the surface dries and the underlying layer re-emerges. This cycle can persist for years without improving the underlying condition. The deep cleaning process for quarry tiles effectively addresses the embedded layer instead of repeatedly treating the surface, resulting in immediate and lasting improvements.

What factors contribute to the differing appearances of quarry tiles across various properties?

Repetitive cleaning that provides no visible results does not indicate a failure in technique; it signifies that soil has already permeated below the surface layer. To diagnose this issue, it is essential to understand why two quarry tile floors in similar conditions can display markedly different appearances. Variations in manufacturing significantly impact both the appearance and performance of the tiles.

Quarry tiles fired at higher temperatures produce denser materials with tighter clay structures. These tiles absorb liquid more slowly, maintain their colour under foot traffic more consistently, and resist surface abrasion better over time. Conversely, tiles fired at lower temperatures tend to possess a more open structure, absorb liquids readily, and exhibit signs of embedded contamination sooner. Both types remain unglazed and moisture-active, but the rate at which problems arise varies greatly.

Why does dirt penetrate into the tile instead of remaining on the surface?

Capillary action draws grease and soil into a quarry tile, preventing them from resting on the surface. The open clay structure facilitates the inward movement of liquid contamination under regular foot traffic. Each step applies pressure that forces liquid residues into the surface voids. Grease from cooking, soil tracked in on shoes, and residues from cleaning products all infiltrate the tile body through this process. Once inside, they become inaccessible to surface cleaning.

Over time, the voids in the upper clay layers become increasingly filled. The tile darkens from within, and residue cycling begins — each cleaning disturbs surface contamination but fails to penetrate the underlying layers. The floor becomes slower to absorb new contamination as the upper voids fill, but the existing embedded layer does not diminish without targeted intervention.

The practical implication is that cleaning frequency alone cannot compensate for inadequate cleaning depth. A floor cleaned daily with a general-purpose product may still develop a significant embedded contamination layer over five to ten years. The maintenance routine that prevents this issue includes using correctly formulated pH-neutral cleaning solutions, avoiding detergents that leave their own residues, and removing grit before wet mopping to minimise surface abrasion and contamination problems.

Why do conventional cleaning products lose their effectiveness over time?

If your usual floor cleaner was effective during the first year or two but now seems to lack impact, it’s likely that the contamination layer has moved beyond the reach of surface-acting products. General-purpose floor cleaners are formulated to tackle residues at or near the surface and are not designed to penetrate the porous clay body to lift long-standing contamination. Once contamination becomes embedded, these products only maintain surface cleanliness without addressing the underlying issues.

Many household cleaners also leave behind their own residues — surfactants, fragrances, and pH-adjusting agents that the tile absorbs alongside the soil they aim to eliminate. This accelerates the residue cycling process and can lead to a surface that feels slightly sticky or appears consistently dull, regardless of recent cleaning. The chemistry required to penetrate the clay body, rather than just the surface, employs controlled alkaline concentrations, mechanical agitation, and wet extraction — a process that general-purpose products are neither designed nor intended to replicate.

In what ways can using an inappropriate sealer damage your floor?

Applying a film-forming sealer on a moisture-active quarry tile floor does not offer protection; instead, it traps the moisture that the floor needs to expel. Film-forming products create a physical barrier over the tile's pores. While suitable for modern glazed tiles, this approach is harmful for unglazed quarry tiles resting on a moisture-active base, leading to sealer failure, efflorescence, and accelerated deterioration.

Properly sealing a quarry tile floor means facilitating moisture movement rather than obstructing it.

The progression of breathability failure follows a predictable pattern. Initially, the sealer may seem effective. Within months, moisture vapour accumulating beneath the coating leads to blistering or milky patches. The coating may peel or deteriorate unevenly. Salts from trapped moisture create white crystalline patches on the surface. Homeowners often clean the floor again, frequently applying more product, worsening the situation. Throughout this process, the tile remains undamaged; however, restoring proper moisture vapour transmission requires professional intervention. An impregnating sealer, which penetrates the tile body rather than resting on top, allows moisture to move while safeguarding the internal structure from further contamination.

What signs indicate that your quarry tile floors are in decline?

White powder on the tile surface, inconsistent finishes that return shortly after cleaning, and coatings that peel without clear explanation are interconnected symptoms of a common underlying issue. Each symptom indicates a specific stage of deterioration, and recognising these signs is vital for understanding the floor's condition.

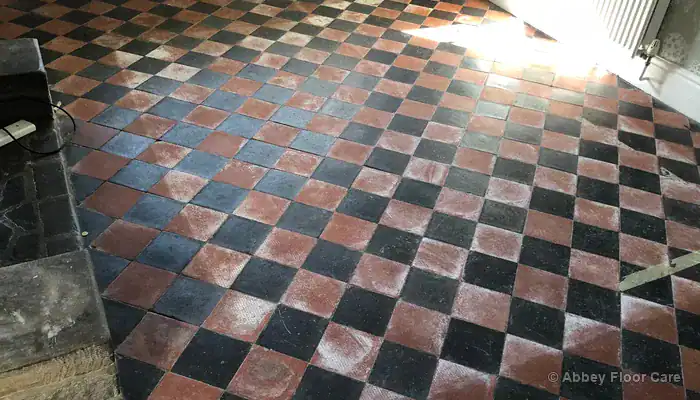

Efflorescence, the white crystalline or powdery deposit formed when moisture carries dissolved salts to the surface, signifies active moisture movement. This often suggests that something above — whether a surface coating or incompatible sealer — is obstructing the evaporation pathway. Homeowners notice a chalky white residue that reappears shortly after cleaning.

Salt migration produces a similar visible effect but occurs deeper within the tile, depositing mineral compounds inside the clay structure rather than on the surface. Over time, this causes the tile surface to appear progressively lighter in affected areas. Sealer failure can be identified through peeling, mottling, or uneven sheen, indicating areas where the coating has separated from the tile.

What essential maintenance practices ensure a well-preserved quarry tile floor?

If your quarry tile floor has been professionally restored, the maintenance routine that follows will determine whether it remains in excellent condition or begins to deteriorate within months. The most crucial factor is using a pH-neutral cleaner specifically formulated for breathable natural tiles — steering clear of general-purpose products and any cleaners containing bleach, vinegar, or surfactant residues that the tile will absorb. Choosing the wrong product can reactivate the residue cycling process from the outset.

Equally important is removing grit before wet mopping. Hard particles of sand and soil tracked indoors act as fine abrasives underfoot, accelerating surface wear in the upper clay layer. Dry sweeping or vacuuming before any wet cleaning helps prevent this. Resealing at appropriate intervals, typically every two to three years for an impregnating sealer depending on foot traffic, ensures ongoing internal protection without causing surface residue build-up.

When does routine maintenance fail to meet your floor's needs?

Persistent darkening that does not improve with the right cleaning products, white salts that reappear soon after removal, and coatings that repeatedly fail indicate that the floor requires professional assessment rather than continued maintenance.

Use the following sequence to evaluate your floor's current condition:

1. Clean the floor with a properly formulated pH-neutral product and allow it to dry completely. If darkening returns within 48 hours and the floor appears unchanged after cleaning, the contamination is embedded beneath the surface.
2. After removing any visible white deposits, check whether they reappear within a week. Rapid reappearance indicates active moisture movement combined with a blocked or partially obstructed evaporation pathway — this signals a sealer failure condition rather than a cleaning issue.
3. Inspect any coatings applied within the last two years. If the coating has begun to peel, mottle, or show an uneven sheen in high-traffic areas, the product was likely incompatible with the floor's moisture movement profile, necessitating professional removal before further treatment.

What actions should you take depending on your floor's current condition?

Every issue with quarry tiles points to a specific element of the restoration system, and the appropriate starting point depends on the floor's current state.

If the floor appears dirty after cleaning and the issue persists, begin with the deep cleaning process: deep cleaning quarry tiles to eliminate decades of grime outlines the complete procedure. If the floor shows white deposits, inconsistent finishes, or failing coatings, follow the restoration pathway: quarry tile restoration details the professional remediation process.
