Concrete Floor Thickness: Essential for Car Hoist Installation

Essential Factors to Consider When Installing a Car Hoist in Your Garage

If you are contemplating the installation of a car hoist in your garage, it is imperative to ensure that your concrete floor adheres to the necessary specifications. A strong and stable foundation is essential not only for the optimal functionality of the hoist but also for the protection of your vehicles and the safety of individuals operating the equipment. By engaging in thorough preparation and strictly following installation guidelines, you can significantly improve both the performance and longevity of your hoist, thereby making your investment truly worthwhile.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This measurement is critical as it enables the even distribution of weight from both the vehicle and the hoist, effectively reducing the potential risks of cracking or sinking over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially extending up to 150mm (6 inches), in order to ensure optimal performance and safety during operation.

Step-by-Step Guide to Assessing the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a crucial element in guaranteeing the safe installation and operation of a car hoist. Several factors must be considered when evaluating the appropriate depth for your slab to ensure that it can adequately handle the loads it will experience during usage. Understanding these factors will aid in preventing costly mistakes and will significantly enhance the safety of your garage setup.

Determining the Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them. Therefore, it is vital to understand the total weight that your concrete floor needs to support. This consideration encompasses not only the weight of the vehicle but also the weight of the hoist itself, which can add a significant load to the floor.

A standard passenger vehicle typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it is wise to account for extra weight as a safety buffer to ensure that the structure can withstand unforeseen circumstances without compromising safety.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you plan to lift significantly heavier vehicles, you may need to consider a thicker slab to guarantee safety and stability during operation.

Consulting with a structural engineer is a prudent decision, as they possess the expertise to provide tailored advice and assist you in determining the precise thickness required based on your unique circumstances and requirements.

Understanding Different Types of Car Hoists and Their Concrete Thickness Needs

It is essential to recognise that various types of car hoists come with distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners looking to integrate a car hoist into their garage.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load they create.

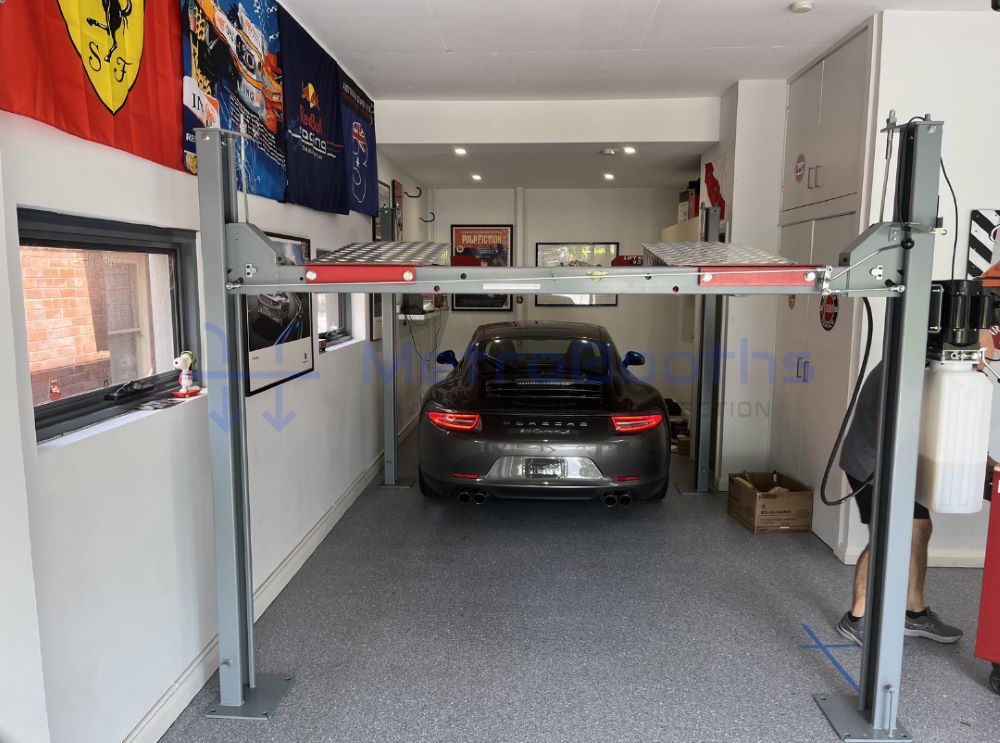

In contrast, four-post lifts distribute weight more evenly across a larger area, allowing them to operate effectively with a slightly thinner slab, usually within the range of 100 mm to 125 mm. This knowledge significantly informs your planning and installation process.

Always refer to the manufacturer's specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is crucial for ensuring the optimal performance and longevity of your equipment.

It is important to note that these recommendations serve as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you intend to lift.

Recognising the Significance of Concrete Strength and Reinforcement Methods

The strength of your concrete is just as critical as its thickness. Stronger concrete can often be successfully utilised at a thinner depth while still providing adequate support for heavy loads, particularly relevant in the context of a car hoist installation.

It is advisable to utilise concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry professionals recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly augment the overall strength of your concrete floor, potentially allowing you to use a thinner slab while still ensuring it effectively supports heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides adequate strength for the majority of car hoists without incurring excessive costs, a vital consideration for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This addition can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Key Installation Factors for Ensuring the Successful Operation of Your Car Hoist

When it comes to installing a car hoist, meticulous site preparation and consistent floor maintenance are of utmost importance. By paying close attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment.

Vital Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before installing your car hoist, it is imperative to verify that your concrete floor meets all essential specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is crucial to use steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, consulting a professional who can accurately assess its condition is highly advisable.

Essential Ongoing Maintenance for Your Car Hoist Following Installation

Once your car hoist is installed, it is vital to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to prevent larger complications that could affect the hoist's functionality.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, using protective mats under the lift arms can help minimise wear and tear on the floor, thereby extending its lifespan.

Regularly checking the tightness of the anchor bolts is also crucial, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This simple maintenance task can prevent costly repairs and ensure safe functionality.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly prolong the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment.

Frequently Asked Questions About Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions associated with the concrete requirements for various types of lifts.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is prudent to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, adding a new layer of concrete may be necessary to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you plan to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a wise choice. We can assist you in assessing your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency.
